Plants

Metal shaft structures for interior and exterior use (RAL, INOX)
Standard, Slim for space saving, with external glass or binding screws.
Infill realised in painted metal sheet, skin-plate (plastic-coated sheet), stainless steel sheet, insulation panelling, glass or upon request.

Hydraulic lifts EN 81.2 – EN 81.20/50
Rucksack type, rated load capacity up to 2400 Kg.

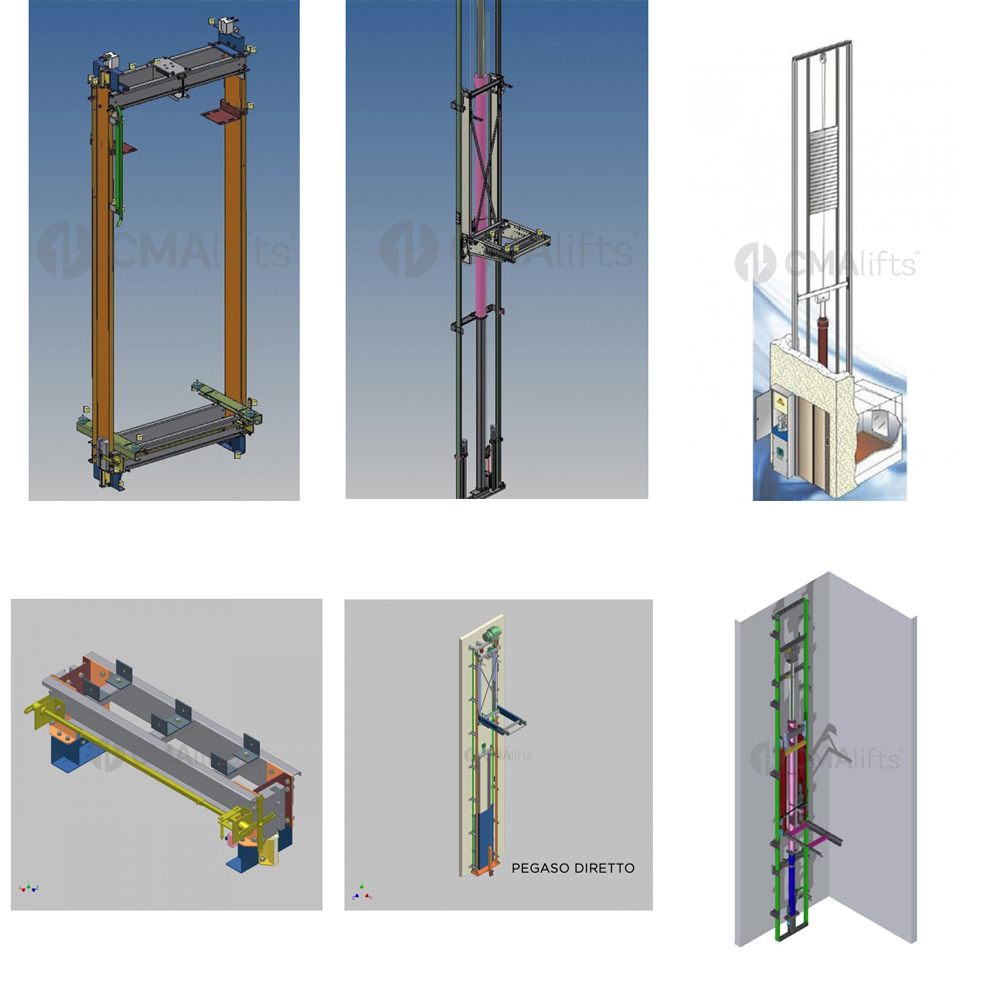

Plant types: central direct-acting; side direct-acting; indirect acting (or roping) 2:1

Electric lifts with machine room EN 81.1 – EN 81.20/50
Sling car frame, with a rated load capacity up to 2000 Kg and rated speed up to 2.5m/s.
Plant types: direct acting; indirect acting 2:1 with upward/downward diverter pulley; motor support supply.

MLR electric lifts EN 81.1- EN 81.20/50
Direct acting, rucksack frame Pegaso NARROW with 440 mm D.B.G. (rated load capacity up to 320 kg and rated speed of 1m/s).
Direct acting, rucksack frame Pegaso 1:1 (rated load capacity up to 630 kg and rated speed of 1m/s).
Indirect acting, rucksack frame Pegaso 2:1 (rated load capacity up to 1600 kg and rated speed of 1m/s).
Indirect acting, sling frame Pegaso DUE (rated load capacity up to 2000 kg and rated speed of 2m/s).
Indirect acting, sling frame Pegaso DUE (rated load capacity up to 2500 kg and rated speed of 1.6m/s).

EN 81.21 reduced pit, reduced headroom lift plants
Hydraulic lifts: minimum pit of 200*mm, minimum headroom of 2400*mm (rated load capacity up to 2000 Kg).
Electric lifts with machine room: minimum pit of 350*mm.
MRL electric lifts: minimum pit of 250*mm, minimum headroom of 2400*mm and rated load capacity up to 1250 kg.

Machinery Directive home-lifts 2006/42 EC
Mercury: hydraulic homelift (rated load capacity up to 1000 kg and rated speed of 0.15 m/s for EC plants; 0.30 m/s for non-EC plants).
Febo: MRL electric homelift (rated load capacity up to 500 Kg and approx. 0.5 KW, as well as rated speed of 0.15 m/s for EC plants; 0.3
m/s for non-EC plants).

Refurbishment kit
Kit Simplex: designed for the refurbishment of old electric lifts.
“Cabina Piuma”: a lightweight cabin, with panels in aluminium measuring 800 x 1200 mm, complete with door. Total weight: 160 Kg.
Space saving lifts for narrow hoist-ways
“Ponte oleo” hydraulic lift with a shaft structure outer dimensions of 770 mm.
“Ponte elettrico MRL” electric lift with shaft structure outer dimensions of 760 mm.
Hydraulic “400 mm D.B.G.”, for hoist-ways with shaft structure outer dimensions of 660 mm.
“MRL Pegaso Narrow”, for hoist-ways with shaft structure outer dimensions of 690 mm.
“MRL Pegaso Ultraslim” lift with car frame dimensions of 235 mm.
“FTR1 Slim” hydraulic lift with car frame dimensions of 180 mm.

Special lift plants
Panoramic lifts
Lifts for the food sector (AISI 316L steel)
Lifts for applications in public transport facilities (underground, subways, train stations)
Fire-fighters and rescue lifts (Italian M.D. 15/09/2005)
Fire-fighters lifts (EN 81.72)

Cabins: standard – tailor-made – panoramic – special shape (upon request) and lightweight.
Landing doors, door-frames and surrounds (windowless, coated, framed glass and full glass)

* The minimum height measurements vary according to plant design specifications (lift plant type, rated speed and load capacity).
NB. The above lift plants are our standard range of products. For specific demands, CMAlifts shall assess relevant project feasibility.
NB. All lift plants can be realized according to EN 81.70 – Italian M.D. 236/89 (Law 13), with 230V single-phase power supply.
